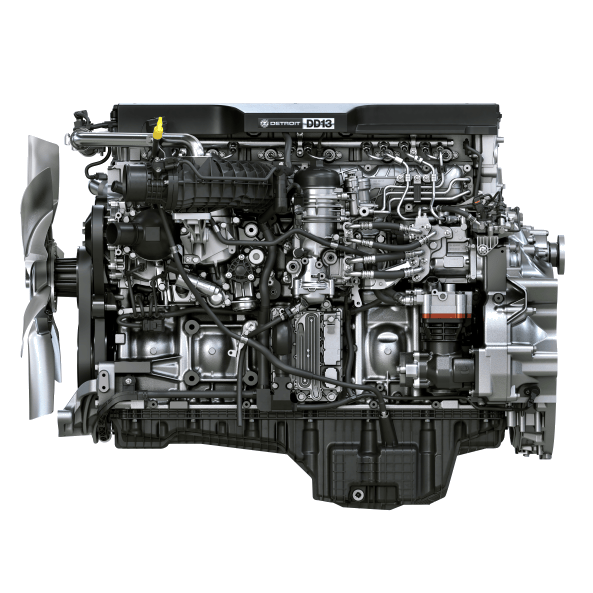

Detroit DD13® Engine

Built for Your Bottom Line

Ideally suited for less-than-truckload, regional distribution and vocational applications, the Detroit DD13 engine offers the flexibility of multiple options for horsepower and torque, all in a package that provides improved fuel economy.


1250-1850 lb-ft

Torque Range

350-505

Horsepower Range

781 cu in (12.8 L)

Displacement

The Detroit DD13 engine’s smart design makes the most of every gallon by integrating groundbreaking, fuel-efficient technologies

More Specs

PERFORM WHEN IT COUNTS

Along with great fuel economy, easy serviceability, consistent horsepower and robust performance, the DD13 also includes:

  • A cooling system with shorter fan-on times for increased fuel efficiency
  • A B50 life of 1 million miles
  • A robust rear gear train
  • A three-stage integrated Jacobs® engine brake for quieter engine braking and superior braking power
  • Powertrain Take-Off (PTO) availability for vocational applications
  • Detroit Connect Virtual Technician integrated remote diagnostic system for maximized uptime
  • A proprietary asymmetric turbocharger to improve performance
  • An Amplified Common Rail System (ACRS) to optimize combustion control
  • 2017 Greenhouse Gas (GHG17) and 2016 OBD (OBD16) compliance

Model Options

Designed for construction, distribution, dump, fire and emergency, government, motor home, oil & gas, refuse, and regional.

Freightliner
New Cascadia®
Cascadia®
M2 112
114SD
122SD
Western Star
4700
4800
4900
5700XE
Find a Dealer

Integrated Detroit™ Powertrain

Only One Company Can Deliver This Level of Integration

The integrated Detroit™ Powertrain delivers the performance and dependability you need to run your business efficiently. Detroit has designed, engineered and manufactured the engine, transmission and axles to work together seamlessly, providing the optimal powertrain solution for your business needs. The integrated Detroit Powertrain is available in the new Freightliner Cascadia®, the original Freightliner Cascadia® Evolution and the Western Star® 5700.

Engine

  • 2017 Greenhouse Gas-Compliant Engines: The flagship DD13® and DD15® engines are compliant 2017 Greenhouse Gas (GHG17) standards.
  • Downsped Engines = Improved Fuel Economy: The DD13® and DD15® with downsped 400 HP and 1750 lb/ft rating deliver greater horsepower and torque at lower RPMs, keeping your truck in top gear longer while cruising at more efficient engine speeds. Lower engine speeds reduce the number of fuel injections, dramatically improving fuel economy.
  • Six-Blade Engine Fan: The six-blade fan reduces power draw without sacrificing cooling capabilities.

Transmission

  • Integrated Communications Benefits: The DT12™ transmission links engine to axles, and communicates with the DD13® and DD15® on an integrated electronics network to share damage-reducing information such as clutch overloading and driveline protection.
  • Super-Finished Gears: Tightly-spaced 12-speed gearing, now with "super-finished" gears in the new DT12™ available for the new Cascadia and Western Star® 5700XE, improves low-speed maneuverability, making the Detroit™ Powertrain not only strong and efficient, but also smooth and safe to operate as well.
  • Intelligent Powertrain Management (IPM): The DT12™ uses information from a topographical map to manipulate both engine and transmission functions, taking advantage of the truck's surroundings. IPM4 (soon to be available in all DT12 transmissions) refines the parameters of this technology, making the truck even more capable of utilizing its surroundings efficiently. Additional
  • Transmission Benefits: The DT12's direct drive and over drive gearing, along with eCoast, are integrated with the downsped engine — which now idles at a lower 500RPM when off-throttle — for optimized fuel economy.

Steer Axle

  • Numerous Steer Axle Advantages: Detroit™ steer axles offer rugged strength in a lightweight package, and integrate optimally with the other components. They are designed for the life of the axle, with multiple ratings available for tailored weight distribution.
  • Superior Maneuverability: The Detroit™ Powertrain's state-of-the-art steer axles provide a 55-degree wheel cut for remarkably nimble maneuvering.
  • Needle Bearings Improve Durability: With needle bearings instead of bushings, they won't damage the king pins, and offer increased durability.



Tandem Rear Axle

  • New Axles Designed for Fuel Economy: To provide optimum efficiency and performance, the Detroit™ Powertrain includes an all-new axle specifically designed to integrate with the downsped DD13®, DD15® and DT12™, resulting in rock-solid reliability and durability.
  • Faster 6x4 Axle Ratios: The 6x4 configuration is available for applications requiring 4-wheel drive and superior traction. A variety of faster axle ratios are available, ranging from 2.41 to 2.28.
  • Faster 6x2 Axle Ratios: The 6x2 configuration boasts a 2.28 ratio, allowing the DD15 to turn lower RPMs with the truck cruising at the same speed. It pairs perfectly with the low RPM torque curve and direct drive transmission. This means it can cruise in top gear longer, for better fuel efficiency.
  • Lighter 6x2 Axle: The 6x2 axle configuration incorporates a non-driven tag axle on the tandem, reducing total weight (by 380 lbs) and the number of moving parts, delivering better fuel economy.
  • New Optional Axle Lubrication Management (ALM): The tandem rear axles feature an optional axle lubrication management (ALM) system that actively regulates the oil level at the ring gear and friction-loss optimized pinion bearings to reduce friction and parasitic loss, extending gear life and further improving fuel efficiency.





Aftertreatment

  • 1-Box: The 1-Box is a complete aftertreatment emissions system that combines the SCR catalyst, the Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF) and Diesel Exhaust Fluid (DEF) all into one simple component.

detroit virtual technician

If maintenance issues come up on the road, you can count on Detroit Virtual Technician remote diagnostics system. Virtual Technician lets you know how serious the fault code is, where the nearest part you need is located, and when you can get into the next available service bay. It can even schedule your repair appointment for you.

Keep running

With the longest service intervals in its class and an easily serviceable design, the Detroit DD13 lowers your cost of ownership by decreasing your time in the shop. With oil and fuel filters positioned above the frame rails, you'll be back in the driver's seat fast

ghg17 vs ghg14 engine fuel efficiency & def usage calculator

Reducing CO2 emissions and meeting 2017 Greenhouse Gas (GHG17) requirements means better fuel economy. Compare how our GHG17 Compliant Detroit™ engines stack up against GHG14 engines. Our GHG17 engines provide better fuel economy while using a slightly higher amount of Diesel Exhaust Fluid (DEF). See for yourself how these engines will affect your operating costs.

DD13

DD15

DD16

DETROIT GHG17 ANNUAL OPERATING COSTS

EXTENSIVE PARTS AVAILABILITY

Sharing common service operations and parts with the DD15 and DD16 ensures that trained technicians are ready to serve you and your DD13 at any of our 800+ authorized Detroit locations across the highways and back roads of North America.
